Product Description

The MONISMS Dante Audio Amplifier is a compact power amplifier module that drives small 4-8Ω speakers [Ceiling Speaker, In-wall Speaker, Pendant Speaker Column Speaker etc.] The MONISMS Dante Amplifier Power 60W, 4-8Ω load, This makes the module ideal for powering small areas consisting of only a few low power speakers.
The module's audio input is via an Ethernet audio network, allowing the use of the DANTE/ AES67 audio network protocol.
MNS-AMP60XXA-2A MAX power 60W,  Which build-in AC 90-265V [50/60Hz] power module.
Dante Audio Amplifier  can be mounted on a DIN rail or screwed onto a panel or wall for easy installation in a remote closet near the speaker area.

[Model:MNS-AMP6011A-2A] 1 Channel, 60W Output, [1 Pair Speaker Terminals].
[Model:MNS-AMP6022A-2A] 2 Channels, 2*30W Output, [2 Pairs Speaker Terminals].

Features:
Supports sample rates up to 96kHz via Audinate UXT Ultimo chipset. This chipset supports both AES67 and SMPTE 2110.
Build-in AC 90-265V [50/60Hz] Power Module, Using PI InnoSwitch3™ High-Efficiency Synchronous Rectification Solution.
Efficient CLASS-D Audio Power Amplifier.
Using 6-layers 2 oz copper [70 um Copper thickness] PCB design, helps optimize reliability, EMC, heat dissipation, SNR, etc.
2*RJ45, [Two RJ45 gigabit RJ45 ports to support daisy chaining] With 1000M switch for data feed-through output.
Dante Domain Manager and AES67 Support.
CE / EMC / LVD/ RoHS Passed.

DANTE AES67 AUDIO NETWORKING - PA & BGM COMMERCIAL AUDIO SOLUTIONS

DANTE AES67 AUDIO NETWORKING - PA & BGM COMMERCIAL AUDIO SOLUTIONS

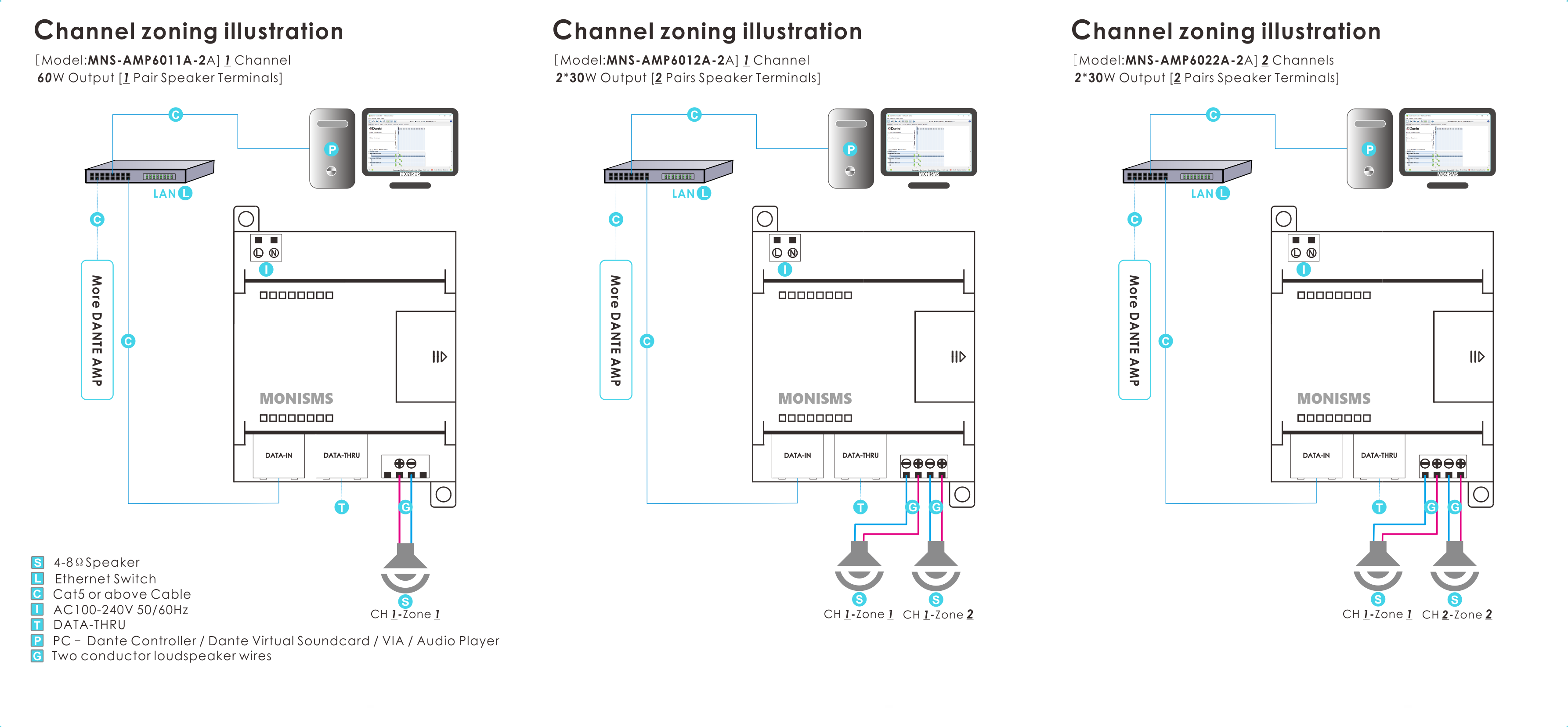

MNS-AMP60XXA-2A DANTE AES67 Audio Amplifiers Channel zoning illustration

MNS-AMP60XXA-2A DANTE AES67 Audio Amplifiers Channel zoning illustration

MNS-AMP60XXA-2P Dimensions Drawing

MNS-AMP60XXA-2P Dimensions Drawing

DANTE PDF

MNS-AMP60XXA-2A 60W DANTE/AES67 Audio Amplifiers User Manual
