Product Description

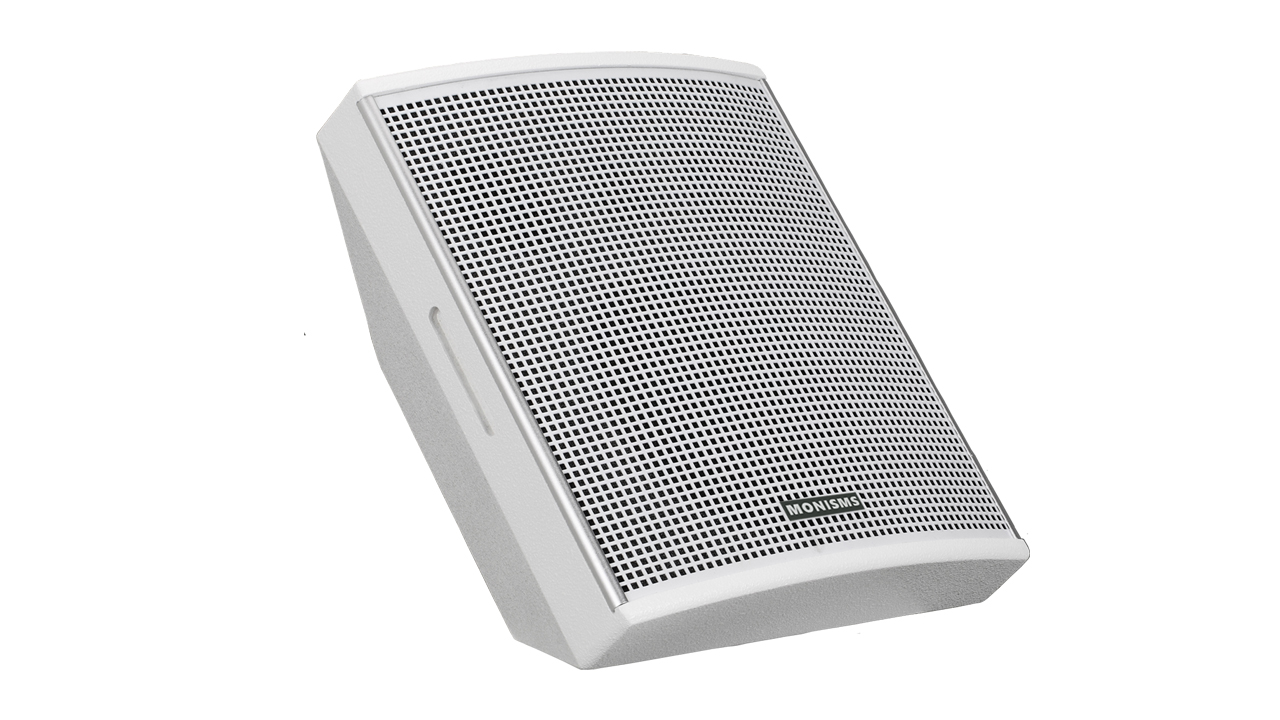

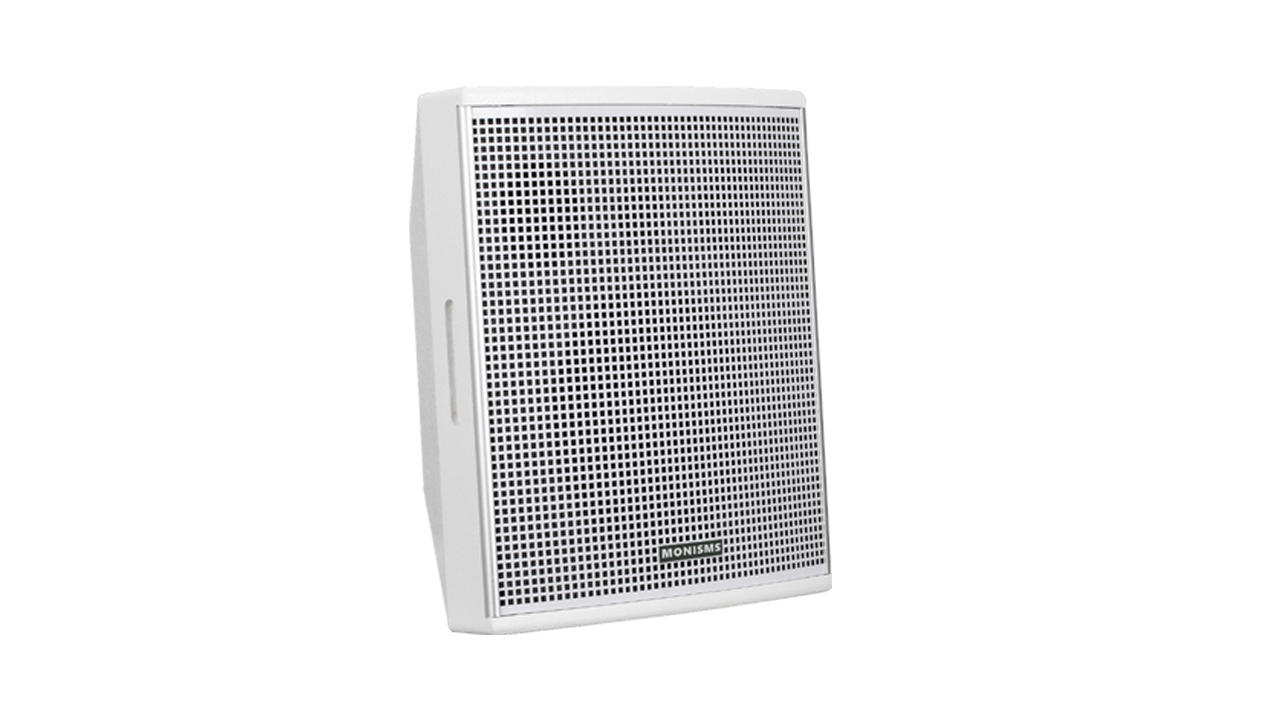

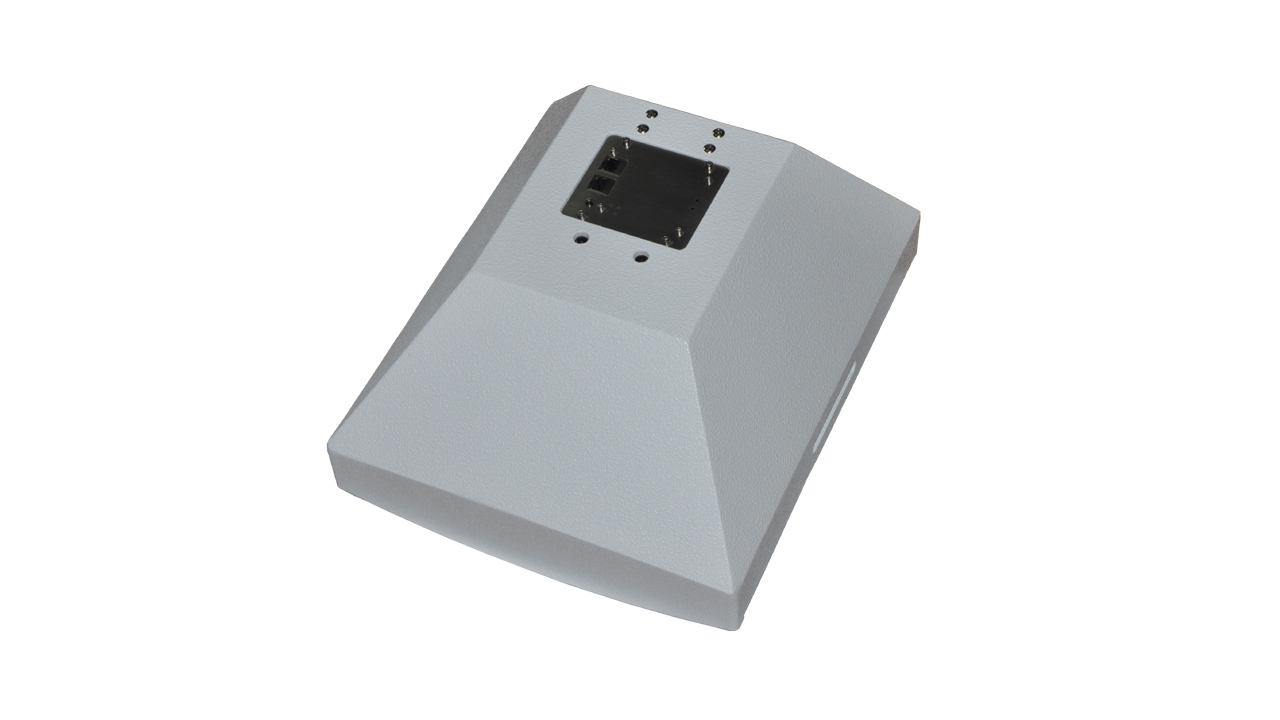

The MONISMS MNS-8AXXWS-2P [MONISMS Model:MNS-8A11WS-2P / MNS-8A22WS-2P] is a digital steerable active wall-mounted wooden speakers with DANTE®-Input.

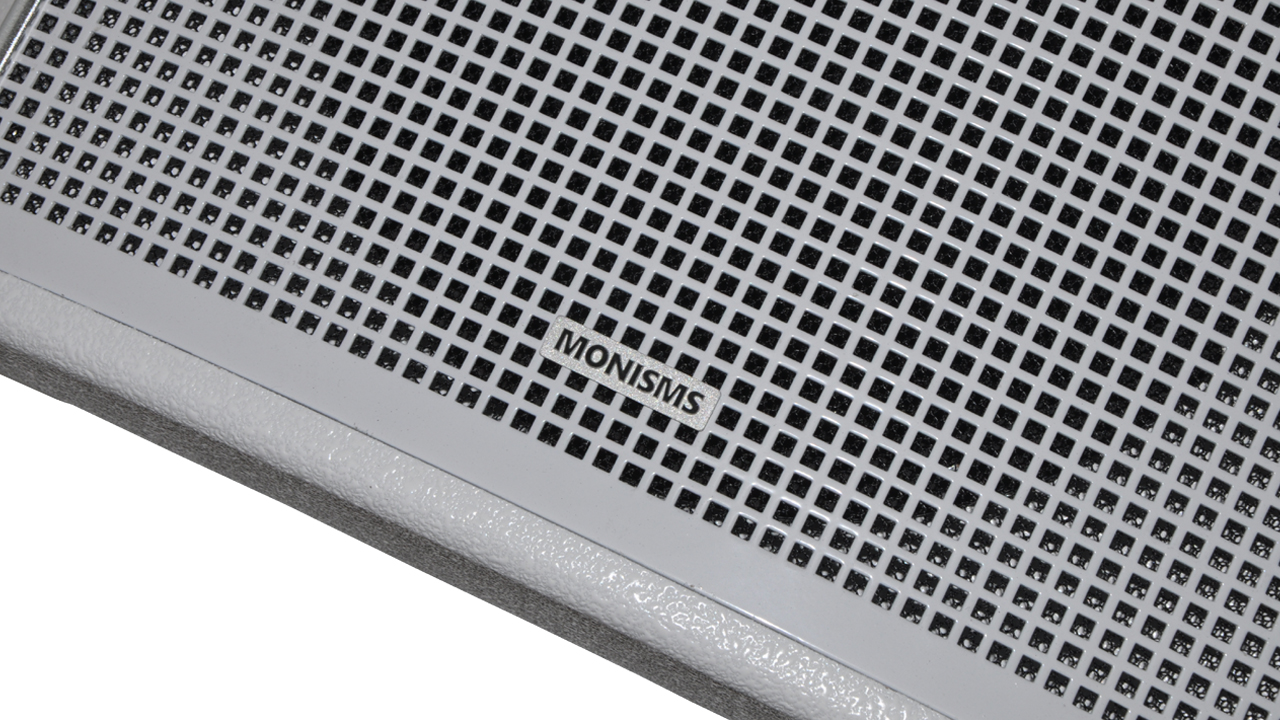

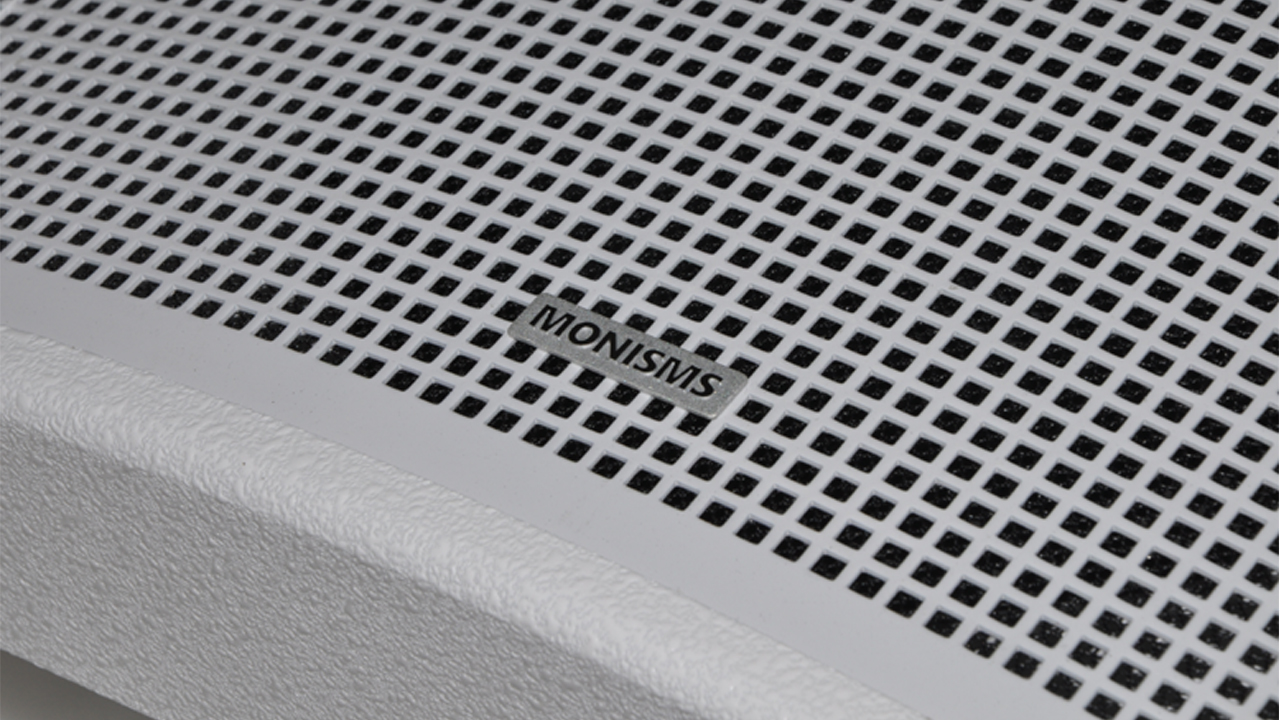

Thanks to its very small and unobtrusive enclosure the MONISMS-Speaker is a fit for most architecturally sensitive environment including mu­seums, churches, conference-rooms and many more challenging spaces and environments.
MNS-8AXXWS-2P is powered by standard POE+ and has a MAX power of 30 watts. If there is not  POE used,  It can used the external 19VDC power supply.

[Model:MNS-8A11WS-2P] 1 Channel, Only Master DANTE Speaker.
[Model:MNS-8A22WS-2P] 2 Channels [One Channel for Master Speaker, Another Channel for Passive Speaker], Reserve Additional Passive Speaker Terminals.

Features:
Supports sample rates up to 96kHz via Audinate UXT Ultimo chipset. This chipset supports both AES67 and SMPTE 2110.
Power Supply via POE or External 19VDC Power Supply.
Full IEEE 802.3AT[30W] Compliance, Isolated Flyback High-Efficiency Synchronous Rectification Solution.
Efficient CLASS-D Audio Power Amplifier.
Using 6-layers 2 oz copper [70 um Copper thickness] PCB design, helps optimize reliability, EMC, heat dissipation, SNR, etc.

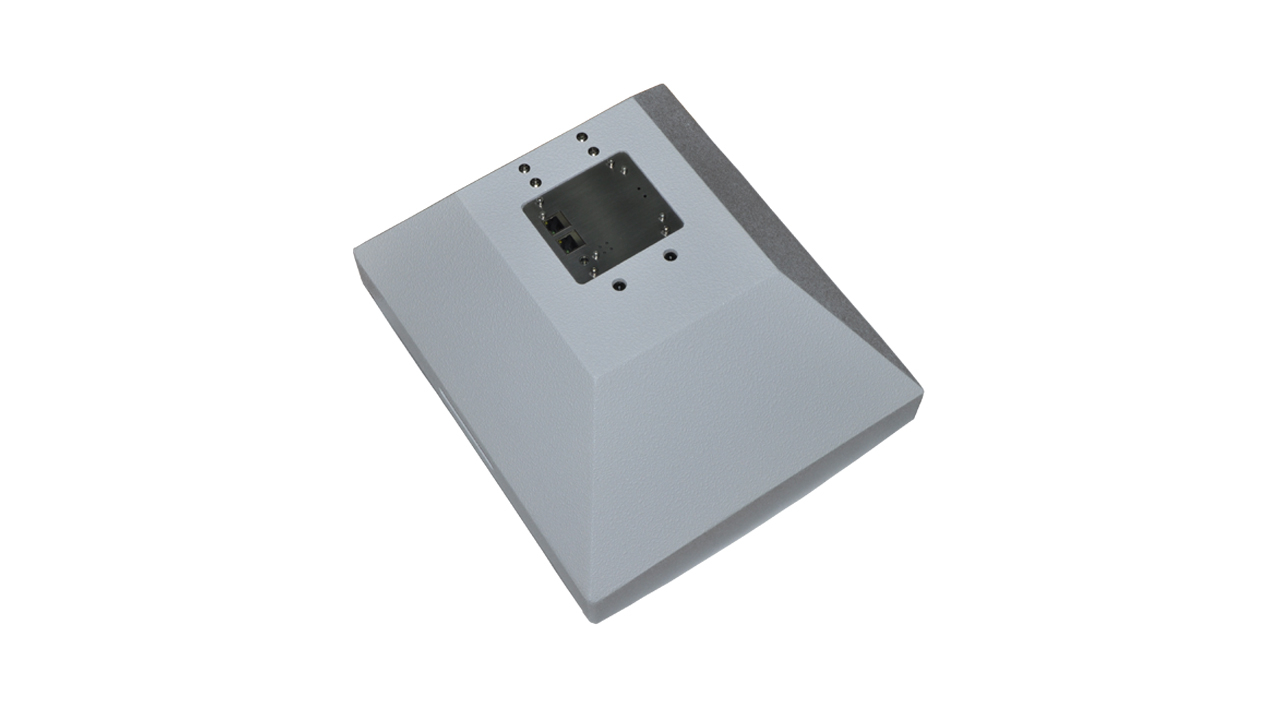

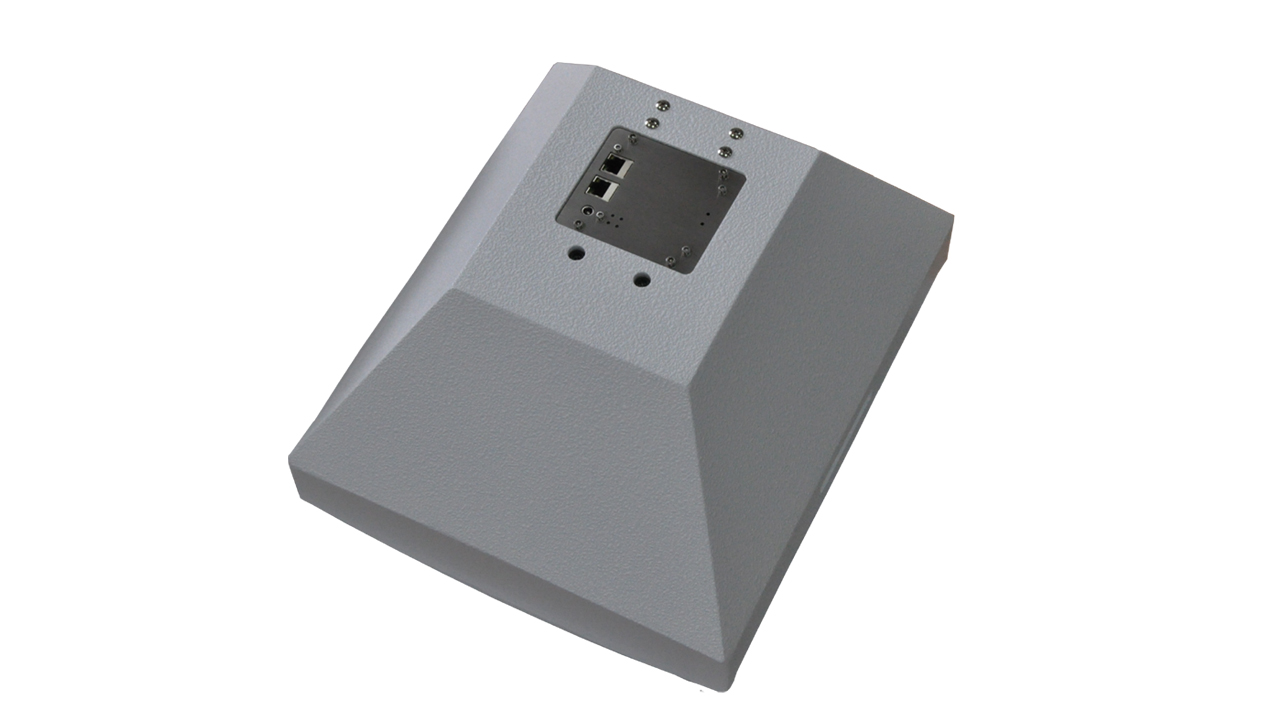

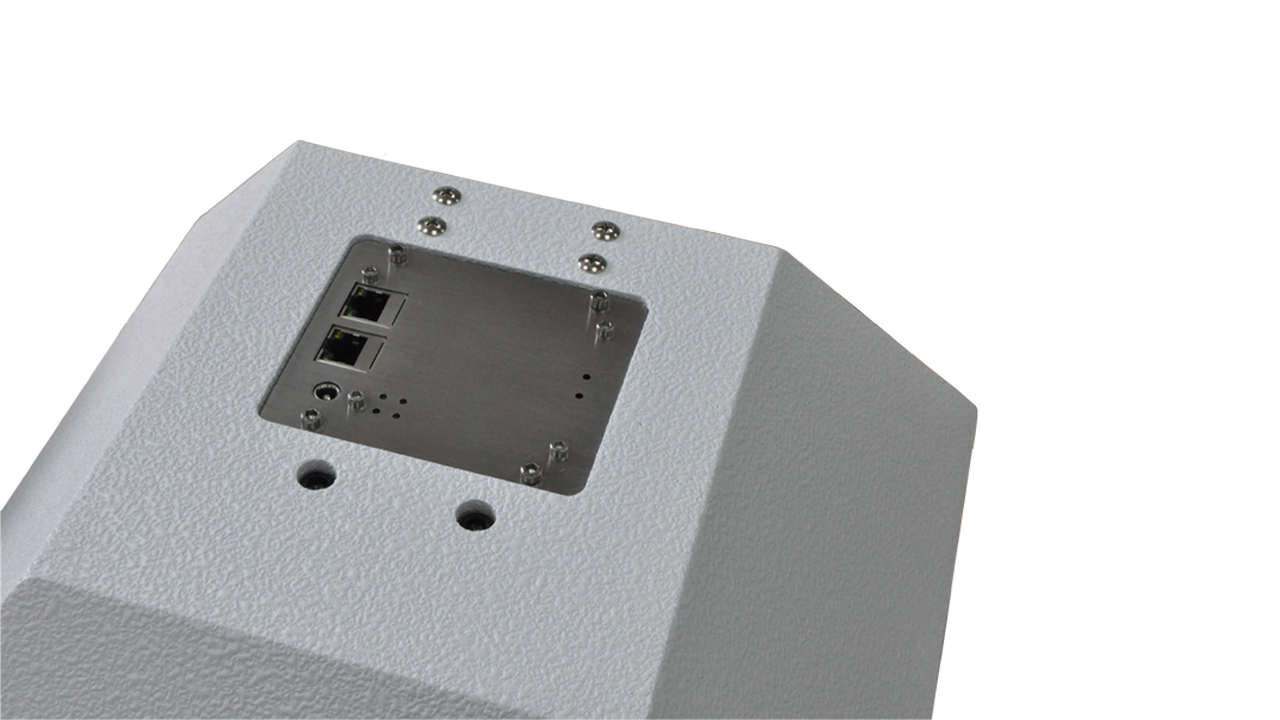

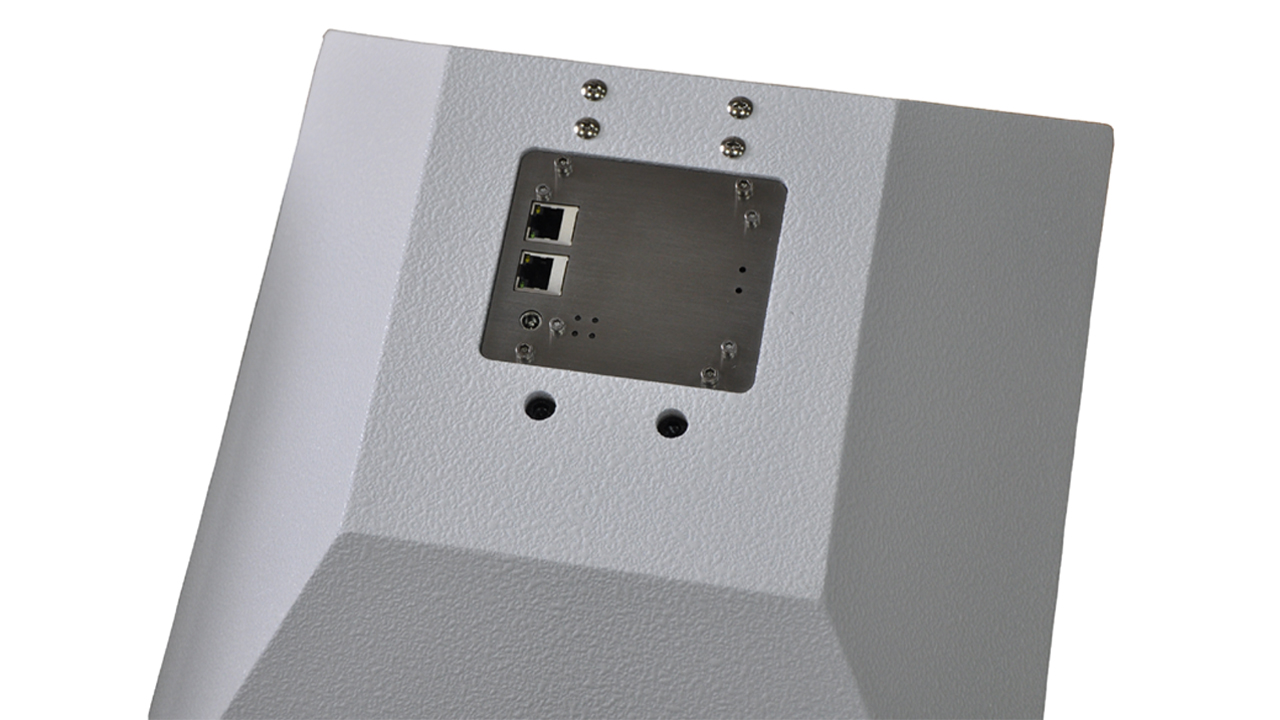

2*RJ45, [Two RJ45 gigabit RJ45 ports to support daisy chaining] With 1000M switch for data feed-through output.
Dante Domain Manager and AES67 Support.
Simply, Generous and Ultra-thin designed suitable for all indoor installation.
CE / EMC / LVD/ RoHS Passed.

DANTE AES67 AUDIO NETWORKING - PA & BGM COMMERCIAL AUDIO SOLUTIONS

DANTE AES67 AUDIO NETWORKING - PA & BGM COMMERCIAL AUDIO SOLUTIONS

8 Inch POE+ DANTE Wall-Mounted Wooden Speakers Dimensions Drawing MNS-8AXXWS-2P

8 Inch POE+ DANTE Wall-Mounted Wooden Speakers Dimensions Drawing MNS-8AXXWS-2P

DANTE PDF

MNS-8AXXWS-2P DANTE/AES67 IP Wall-Mounted Wooden Speakers User Manual
