Product Description

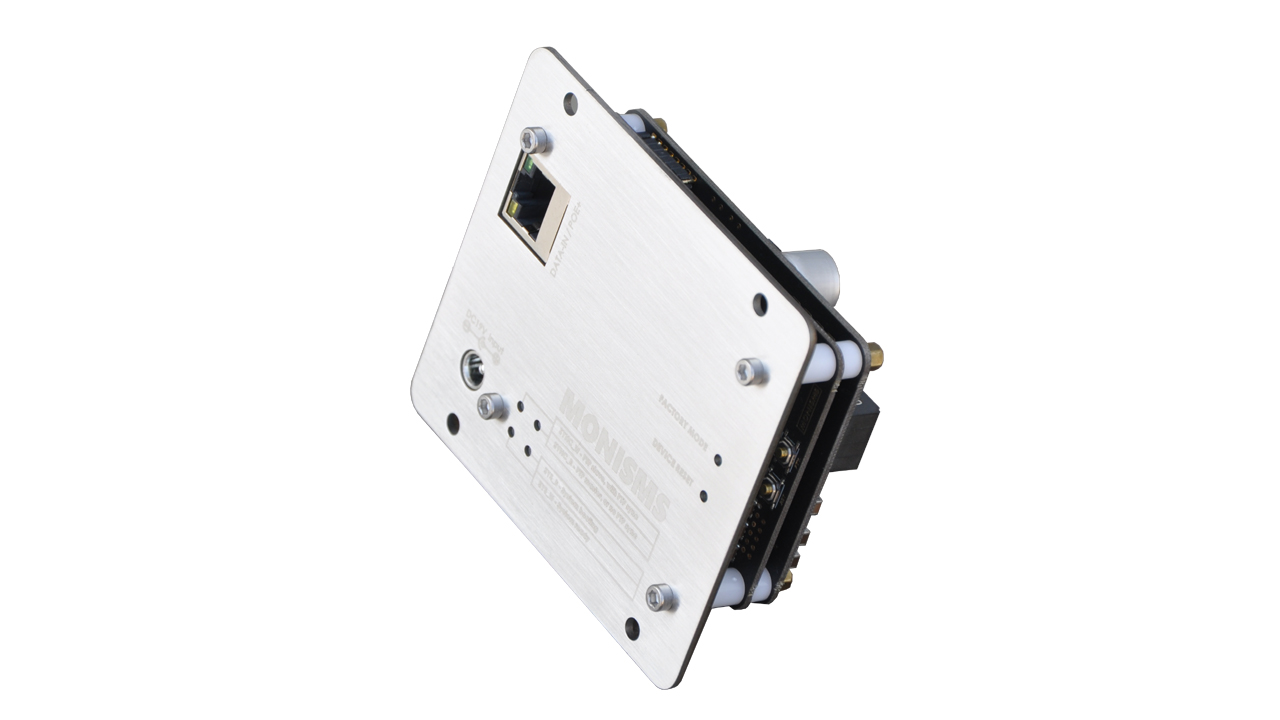

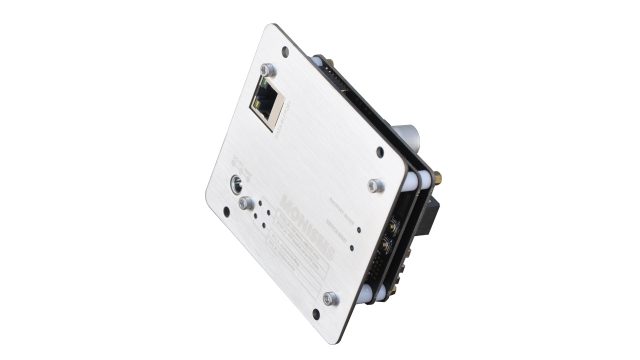

The POE DANTE/AES67 Audio Amplifier Modules MNS-AMPMC30XXA-1P, Built-in to your 4-8 ohm speaker, that instantly Dante-enables your speakers.
Dante Audio Amplifier module that drives small 4-8Ω speakers.
The MONISMS Dante Amplifier Modules Power 30W, 4-8Ω load.
The module's audio input is via an Ethernet audio network.
MNS-AMPMC30XXA-1P is powered by standard POE+ and has a MAX power of 30 watts. If there is not POE used, It can used the external 19VDC power supply.

[Model:MNS-AMPMC3011A-1P] 1 Channel, 30W Output, [1 Pair Speaker Terminals].
[Model:MNS-AMPMC3012A-1P] 1 Channel, 2*15W Output, [2 Pairs Speaker Terminals].
[Model:MNS-AMPMC3022A-1P] 2 Channels, 2*15W Output, [2 Pairs Speaker Terminals].

Features:
Supports sample rates up to 96kHz via Audinate UXT Ultimo chipset. This chipset supports both AES67 and SMPTE 2110.
Power Supply via POE or External 19VDC Power Supply.
Full IEEE 802.3AT[30W] Compliance, Isolated Flyback High-Efficiency Synchronous Rectification Solution.
Efficient CLASS-D Audio Power Amplifier.
Using 6-layers 2 oz copper [70 um Copper thickness] PCB design, helps optimize reliability, EMI, EMC, heat dissipation, SNR, etc.
1*RJ45 Connection for Audio from POE Ethernet.
Dante Domain Manager and AES67 Support.
CE / EMC / LVD/ RoHS Passed.

DANTE AES67 AUDIO NETWORKING - PA & BGM COMMERCIAL AUDIO SOLUTIONS

DANTE AES67 AUDIO NETWORKING - PA & BGM COMMERCIAL AUDIO SOLUTIONS

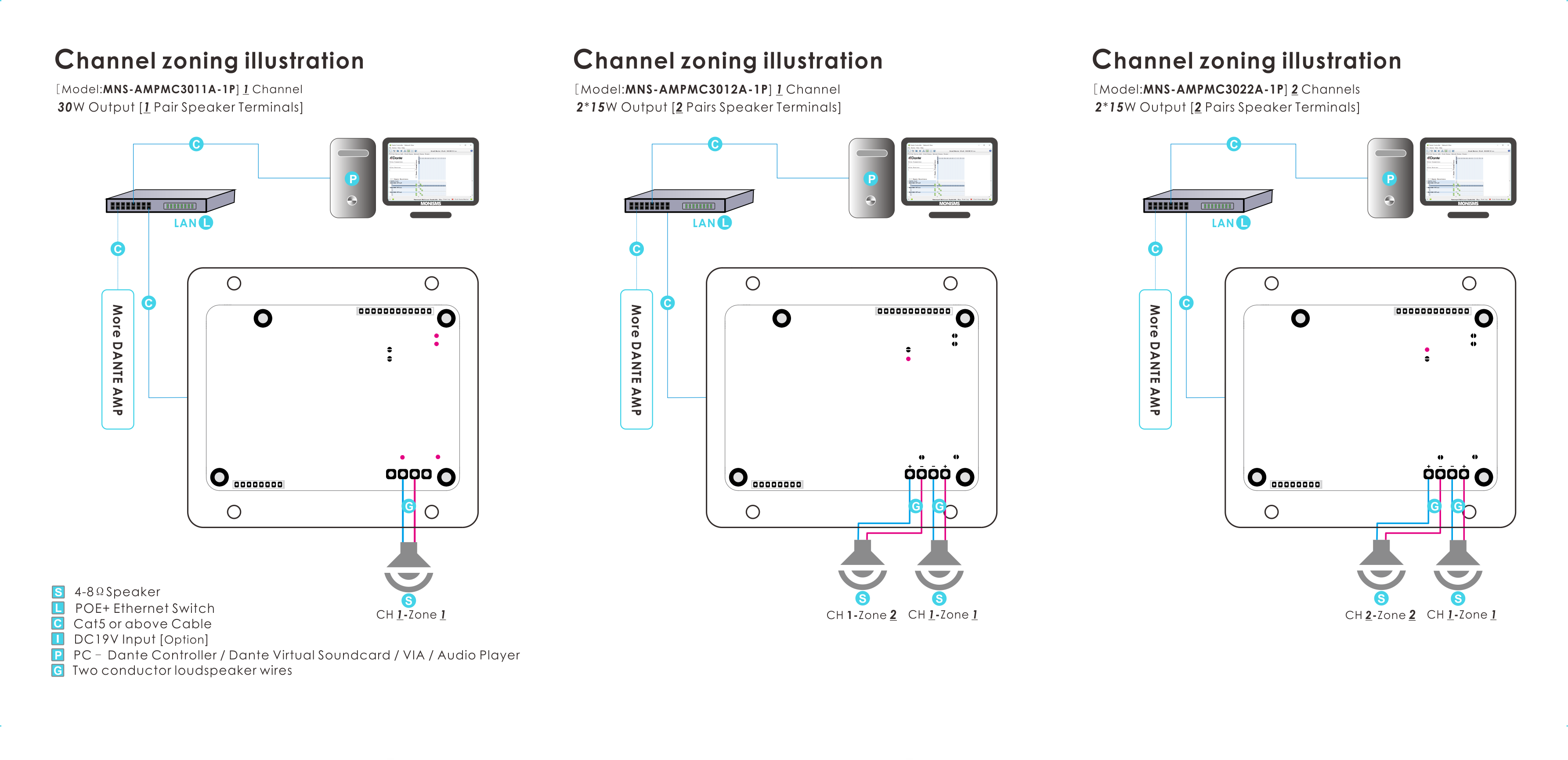

MNS-AMPMC30XXA-1P POE DANTE AES67 Audio Amplifier modules Channel zoning illustration

MNS-AMPMC30XXA-1P POE DANTE AES67 Audio Amplifier modules Channel zoning illustration

MNS-AMPMC30XXA-1P Dimensions Drawing

MNS-AMPMC30XXA-1P Dimensions Drawing

DANTE PDF

MNS-AMPMC30XXA-1P POE DANTE Amplifiers Module User Manual
