Product Description

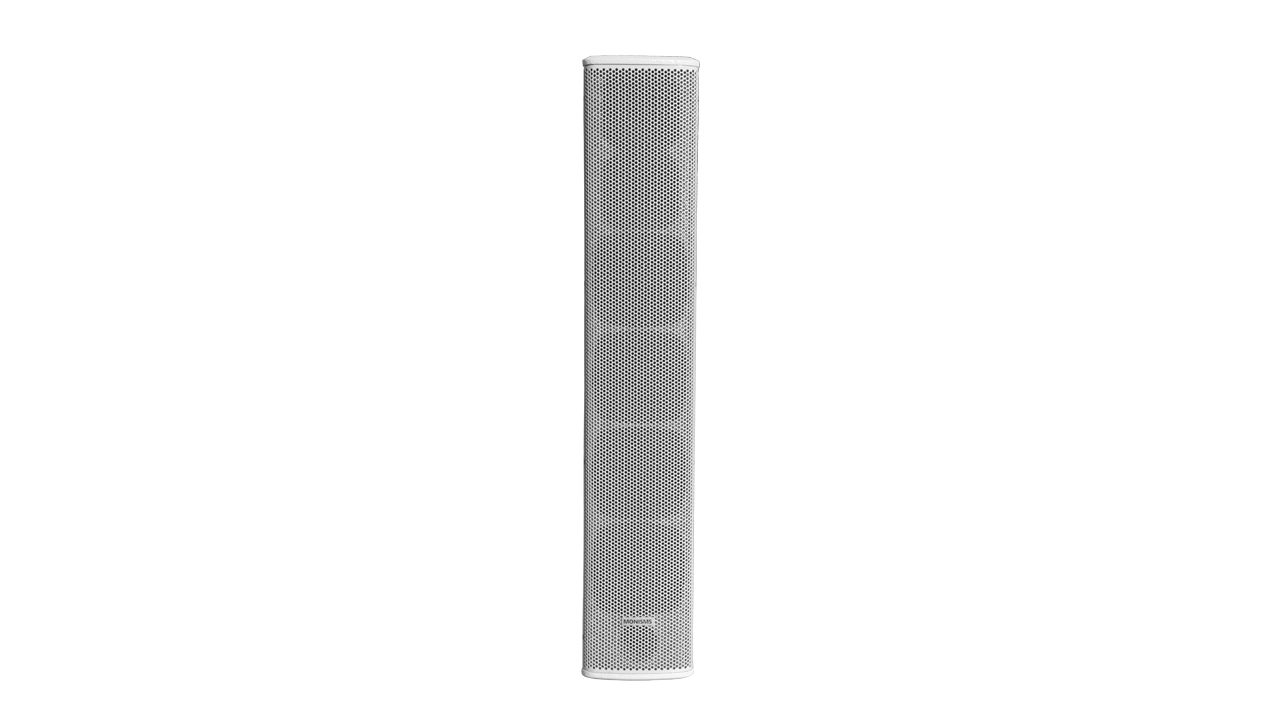

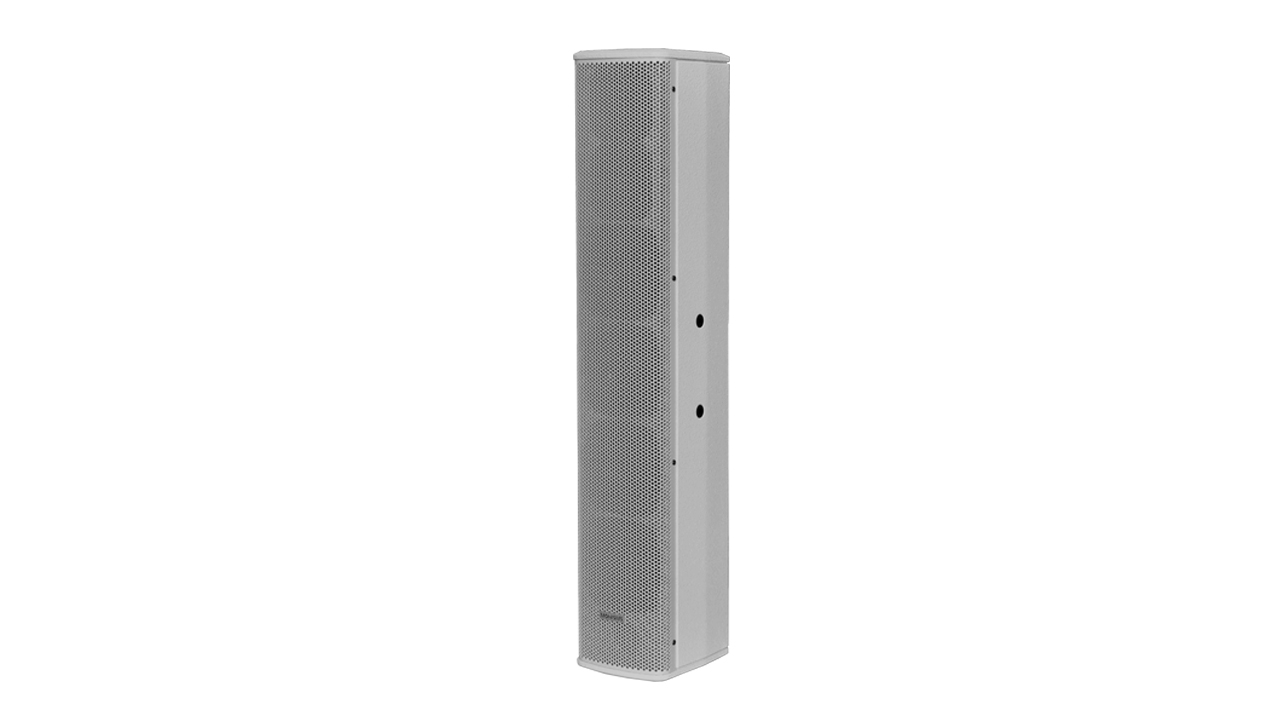

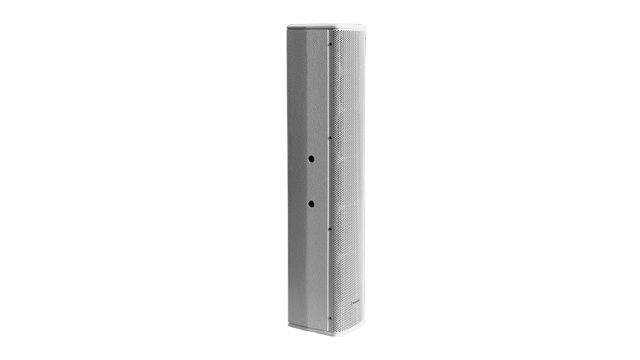

The MONISMS MNS-4AXXICS-2P is a digital steerable active column-speaker with DANTE®-Input.
Thanks to its very small and unobtrusive enclosure the MONISMS-Speaker is a fit for most architecturally sensitive environment including mu­seums, churches, conference-rooms and many more challenging spaces and environments.
The DANTE/AES67 column-loudspeaker advances the MONISMS Architectural line of modular arrays with a self-powered electronically-steerable loudspeaker offering consistent audio levels with outstanding vocal intelligibility and full range music reinforcement.
MNS-4AXXICS-2P  is powered by standard POE+ and has a MAX power of 30 watts. If there is not  POE used,  It can used the external 19VDC power supply.

[Model:MNS-4A11ICS-2P] 1 Channel, Only Master DANTE Speaker.
[Model:MNS-4A12ICS-2P] 1 Channel, Reserve Additional Passive Speaker Terminals.
[Model:MNS-4A22ICS-2P] 2 Channels [One Channel for Master Speaker, Another Channel for Passive Speaker], Reserve Additional Passive Speaker Terminals.

Features:
Supports sample rates up to 96kHz via Audinate UXT Ultimo chipset. This chipset supports both AES67 and SMPTE 2110.
Power Supply via POE or External 19VDC Power Supply.
Full IEEE 802.3AT[30W] Compliance, Isolated Flyback High-Efficiency Synchronous Rectification Solution.
Efficient CLASS-D Audio Power Amplifier.
Using 6-layers 2 oz copper [70 um Copper thickness] PCB design, helps optimize reliability, EMC, heat dissipation, SNR, etc.
2*RJ45, [Two RJ45 gigabit RJ45 ports to support daisy chaining] With 1000M switch for feed-through output.
Dante Domain Manager and AES67 Support.
CE / EMC / LVD/ RoHS Passed.

DANTE AES67 AUDIO NETWORKING - PA & BGM COMMERCIAL AUDIO SOLUTIONS

DANTE AES67 AUDIO NETWORKING - PA & BGM COMMERCIAL AUDIO SOLUTIONS

4 Inch POE+ DANTE Active Column-Speakers Dimensions Drawing MNS-4AXXICS-2P

4 Inch POE+ DANTE Active Column-Speakers Dimensions Drawing MNS-4AXXICS-2P

DANTE PDF

MNS-4AXXICS-2P POE DANTE Active Column-Speakers User Manual
