The speaker is Power supply via POE/POE+ (Power over Ethernet) or DC19V power supply, available at option. The speaker includes a Class-D audio power amplifier which provides effective use of power.
The audio network system is also compatible with AES67 which makes this speaker system to be flexible with other audio network systems.
The system comes with 6.25” coaxial 60W loudspeaker driver, MNS-6AXXCS-1P [MONISMS Model:MNS-6A11CS-1P / MNS-6A12CS-1P / MNS-6A22CS-1P] that has excellent dispersion, wide bandwidth and smooth frequency response which makes this the top choice for today’s overhead commercial applications.
This assembly can be used in wide range of projects for paging and background music applications.
MNS-6AXXCS-1P is powered by standard POE+ and has a MAX power of 30 watts. If there is not POE/POE+ used, It can used the external 19VDC power supply.
[Model:MNS-6A12CS-1P] 1 Channel, Reserve Additional Passive Speaker Terminals.

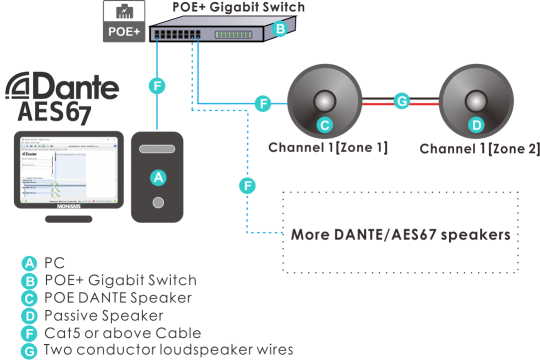

[Model:MNS-6A22CS-1P] 2 Channels [One Channel for Master Speaker, Another Channel for Passive Speaker], Reserve Additional Passive Speaker Terminals.
Network Enabled Loudspeaker by Dante™
Supports sample rates up to 96kHz via Audinate’s Ultimo UXT series chip
Power Supply via POE/POE+ or External 19VDC Power Supply
Full IEEE 802.3AT[30W] Compliance, High-Efficiency Synchronous Rectification Solution
Efficient CLASS-D Audio Audio Amplifier
Using 6-layers PCB [1 oz Copper Thickness] design helps optimize reliability, EMI, EMC, heat dissipation, SNR, etc.
1*RJ45 Connection for Audio from POE Ethernet
Dante Domain Manager and AES67 Support
CE / EMC / LVD/ RoHS Passed
