Product Description

The speaker is Power supply via POE+ (Power over Ethernet) or DC24V power supply, available at option. The speaker includes a Class-D amplifier which provides effective use of power.
This system will solve the issue of having to provide a separate amplifier or I/O interface for speaker installations.
The audio network system is also compatible with AES67 which makes this speaker system to be flexible with other audio network systems.
The network system is also Dante Domain Manager Ready.
The system comes with 6.25” coaxial 60W loudspeaker driver, MNS-6AXXCS-2P [Model:MNS-6A11CS-2P / MNS-6A12CS-2P / MNS-6A22CS-2P] that has excellent dispersion, wide bandwidth and smooth frequency response which makes this the top choice for today’s overhead commercial applications.
This assembly can be used in wide range of projects for paging and background music applications.

[Model:MNS-6A11CS-2P] 1 Channel, Only Master DANTE Speaker.
[Model:MNS-6A12CS-2P] 1 Channel, Reserve Additional Passive Speaker Terminals.
[Model:MNS-6A22CS-2P] 2 Channels [One Channel for Master Speaker, Another Channel for Passive Speaker], Reserve Additional Passive Speaker Terminals.

Features:
Network Enabled Loudspeaker by Dante™
Power Supply via POE+ or 24V Power Supply
RJ45 Connection for Audio from POE+ Ethernet
2*RJ45, [Two  RJ45 gigabit RJ45 ports to support daisy chaining] With 1000M switch for feed-through output.
AES67 Compatible
Dante Domain Manager Ready
CE Passed



2 Channel 2 Zone POE DANTE speaker Channel zoning illustration

[Model:MNS-6A22CS-2P] 2 Channels [One Channel for Master Speaker, Another Channel for Passive Speaker], Reserve Additional Passive Speaker Terminals.

1 Channel 2 Zone POE DANTE speaker Channel zoning illustration

[Model:MNS-6A12CS-2P] 1 Channel, Reserve Additional Passive Speaker Terminals.

1 Channel 1 Zone POE DANTE speaker Channel zoning illustration

[Model:MNS-6A11CS-2P] 1 Channel, Only Master DANTE Speaker.

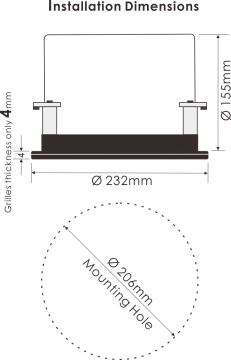

POE DANTE AES67 IP Ceiling Speaker MNS-6AXXCS-2P Installation Dimensions

POE DANTE AES67 IP Ceiling Speaker MNS-6AXXCS-2P Installation Dimensions

MNS-6A22CS-2P DANTE/AES67 IP Ceiling Speaker User Manual
